Product Overview

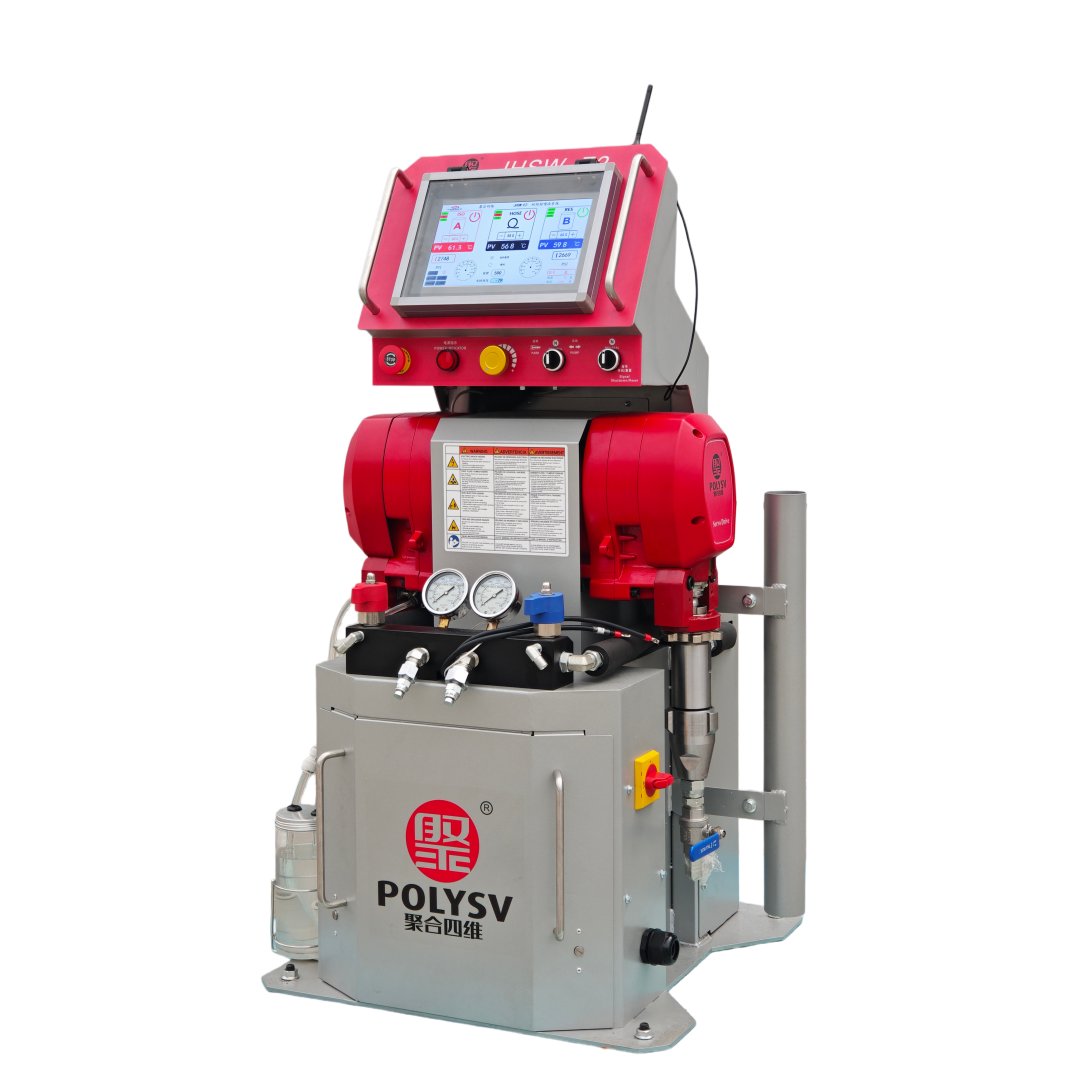

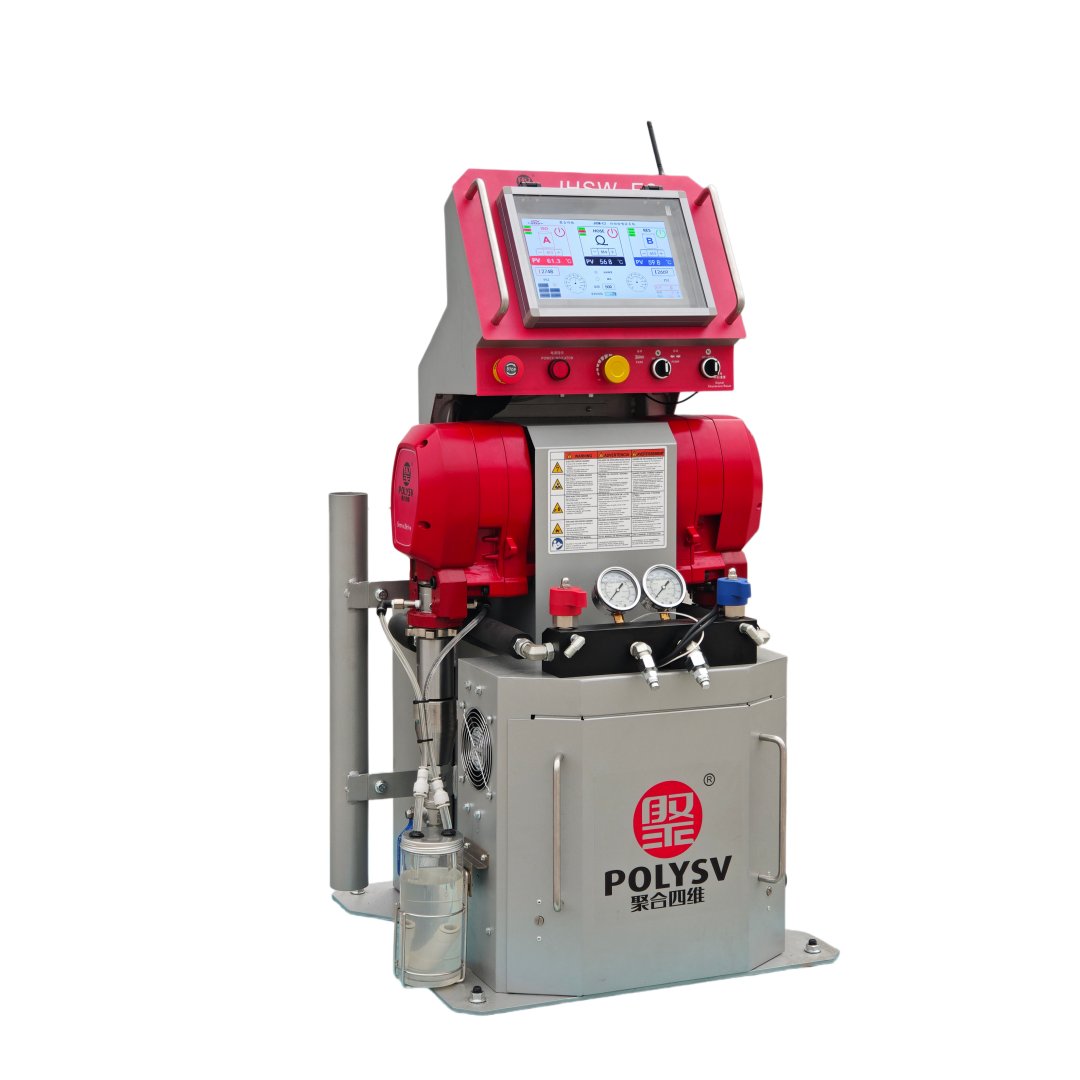

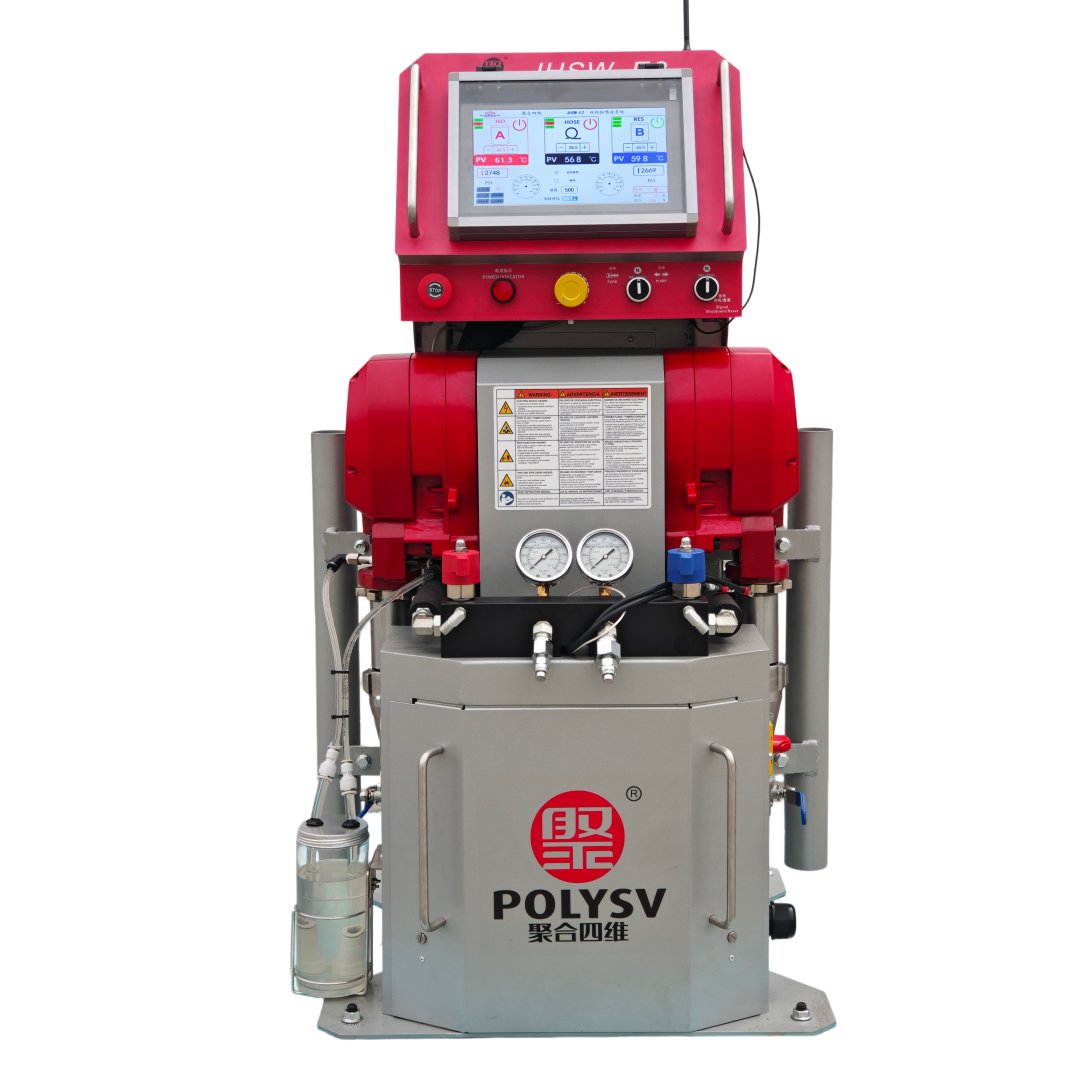

JHSW-E2 High-Pressure Polyurea / Polyurethane Spray Equipment is purpose-built for professional application of polyurea and polyurethane materials. It features a modular design, facilitates quick component maintenance, and enables efficient process switching, providing flexible adaptation to the precise coating requirements of various projects.
Key Features and Advantages
Smart Protection, Built In
· Bias Intelligent Protection: automatic imbalance emergency stop safeguards coating quality when A/B ratios drift.
· Over-Temperature & Over-Pressure Shutdown: intelligent cutoffs prevent safety incidents before they escalate.
Anti-Crystallization, End to End
· Self-Cleaning Lubricant System: intelligent circulation cleaning eliminates the risk of ISO pump solidification — the most common cause of equipment failure in polyurea spraying.
· One-Touch Reset: parks the A-side pump at the bottom of its stroke to prevent isocyanate crystallization around the seals and shaft, even during overnight shutdowns.
· ISO Pump Lubrication & Recirculation Valve: continuously keep the A-side primed and balanced for stable pressure on every pull.
Stable, Durable, Easy to Service
· Brushless Servo Motor: high-temperature resistant, high torque, and exceptionally stable under continuous load.
· Modular Design: quick-release cylinder bottom-end and a rear heating platform simplify troubleshooting and cut downtime.
Technical Specifications
Parameter | Specification |
Model | JHSW-E2 |
Material Ratio (Volume) | 1:1 |
Maximum Working Pressure | 3,500 psi (24.1 MPa / 241 bar) |
Maximum Hose Length | 90 m |
Maximum Fluid Temperature | 190°F (88°C) |
Output | 4–12 kg/min |
Total Power | 20.5 kW |
Drive Type | Electric |
Weight | 155 kg (unit only) |
Dimensions (L × W × H) | 60 × 70 × 113 cm |
About POLYSWELL
Polyswell is a one-stop manufacturer of polyurea materials, spray equipment, and technical services. Equipment, raw materials, application guidance, and after-sales support all come from a single source, so formulation and machinery are always perfectly matched to your project.
