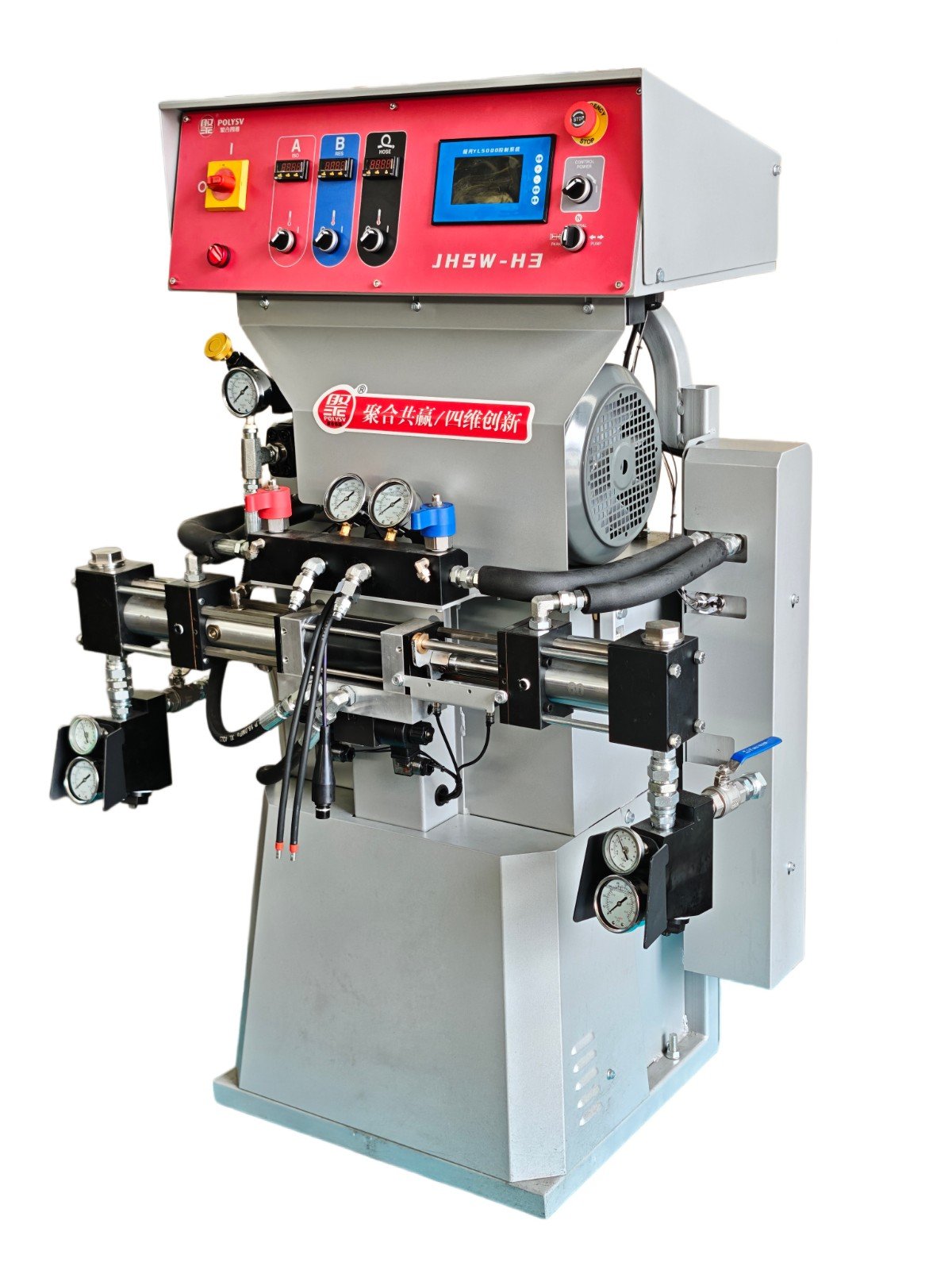

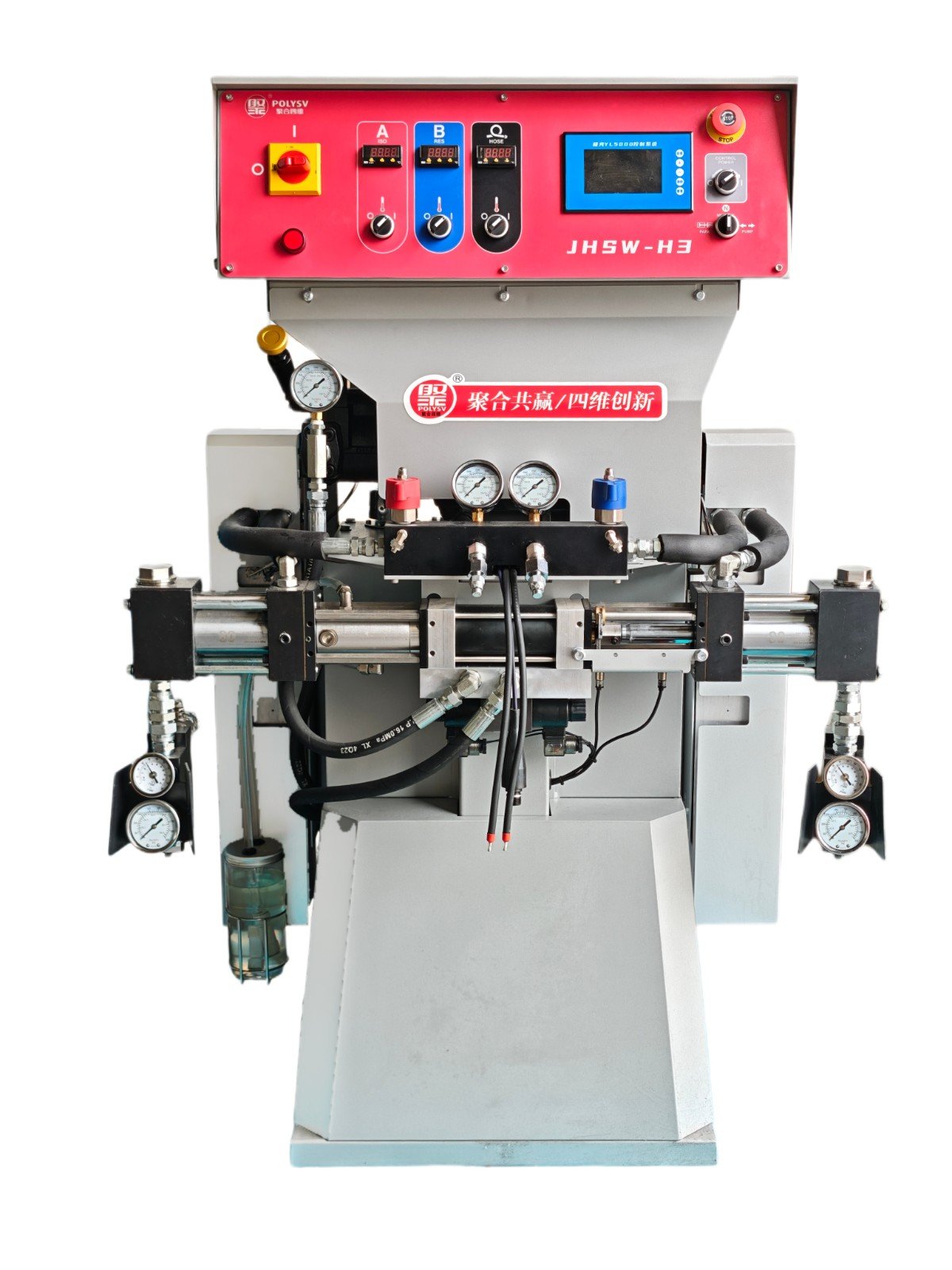

The JHSW-H3 is a hydraulic high-pressure spray machine developed for professional polyurea and polyurethane applications. It is designed for continuous spraying work and combines a powerful hydraulic drive system with stable material delivery and practical control functions.
Key Features
Hydraulic Drive System
The hydraulic drive provides strong and stable power for high-pressure spraying applications. The air-cooled hydraulic system is designed for effective heat dissipation and reliable operation during extended use.
Stable Spraying Performance
The H3 uses a horizontal proportioning pump and an independent temperature control system to maintain stable material delivery. The A and B material temperatures and heated hose can be adjusted according to the requirements of different spraying materials.
Practical Protection System
The equipment monitors pressure difference, system voltage, temperature, and other operating conditions in real time. Pressure difference protection and overpressure protection help reduce abnormal operation, while an emergency stop provides quick shutdown when required.
Easy Maintenance
Key components are designed for convenient inspection and servicing. The flip-top electrical cabinet provides easier access to the electrical system, while the ISO pump lubrication system helps reduce isocyanate crystallization around the pump seals and shafts.
The non-contact reversing system also reduces mechanical wear and contributes to longer service life.
Control and Monitoring
The H3 provides a straightforward control system for daily operation. Operators can adjust heating settings, switch between parking and pumping modes, monitor A/B pressure, and check pump cycles and equipment status through the control panel.
The pump cycle counter can be used to monitor material consumption, while the error display helps with basic equipment diagnostics.
Applications
The JHSW-H3 can be used for a wide range of professional polyurea and polyurethane spraying applications, including:
· Building and roof waterproofing
· Foundation and concrete protection
· Steel structure coating
· Pipeline and tank anti-corrosion
· Industrial protective coatings
· Large-area polyurea spraying
· Polyurethane spraying applications
Technical Specifications
Parameter | Specification |
Model | JHSW-H3 |
Drive System | Hydraulic |
Material Ratio | 1:1 by volume |
Maximum Working Pressure | 3,500 psi |
Maximum Hose Length | 90 m |
Maximum Fluid Temperature | 190°F (88°C) |
Output | 11 kg/min |
Total Power | 31 kW |
Weight | 320 kg (including hydraulic oil) |
Dimensions (L × W × H) | 94 × 57 × 140 cm |
